Cable markers

by Regoplast^®

by

The Regoplast^® cable marking system enables simple, fast and permanent marking of cables and wires at any location. Regoplast^® cable markers of the 1980 and 0081 series are UV-stable, scratch-resistant, insensitive to heat and cold, and resistant to solvents, acids and alkalis.

Both series are made of 2-K injection molded construction, where the characters and carriers are permanently bonded together by injection molding. Their fields of application: any form of electrical cables and wires. Our customers come, for example, from the food industry, machine and special machine construction, plant and equipment construction, telecommunications, IT technology, medical technology and the energy supplier sector. You use our cable markers for wire designation in switchboard construction, for labeling cables in solar and photovoltaic systems and countless other applications.

our storage boxes

They bring order to the diversity

You can find everything that you need for permanent cable marking here, clearly ordered in a convenient compartment storage box. Sorting: per digit / letter / special character: 30, 50, 100 or 150 pieces. including perforated tape, Cable shears and cable ties.

Cable marker series 1980

New now! More

Special characters

for the series 1980

New in the 1980 series: 'Underline and quote/unquote characters for marking cables and wires.

Series 1980

Markers assembled on polypropylene perforated tape and stainless steel tape (stainless steel tape assembled on request as shown by Regoplast^® GmbH).

The attachment to the cable with stainless steel tape (especially for the food industry) and cable tie.

Our service for you:
Assembly of Regoplast^® cable markers series 1980 on Regoplast^® perforated tape

Assembly instruction series 1980

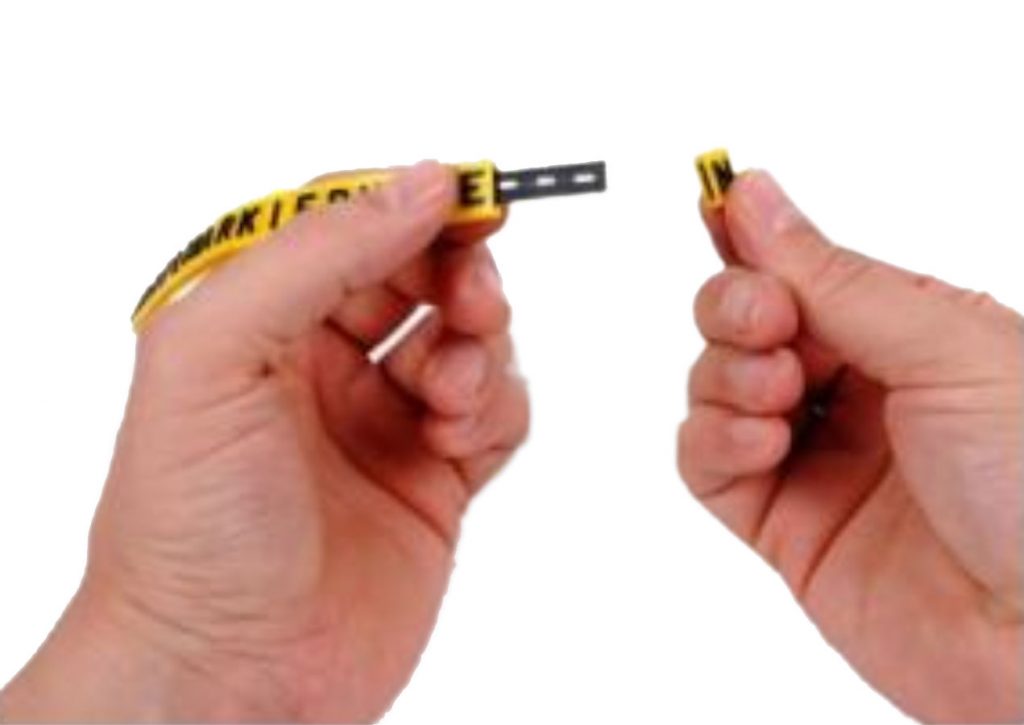

Slide cable macerator individually onto the perforated tape

Through the "lugs" in the cable makers snap ...

... these into the openings of the perforated tape.

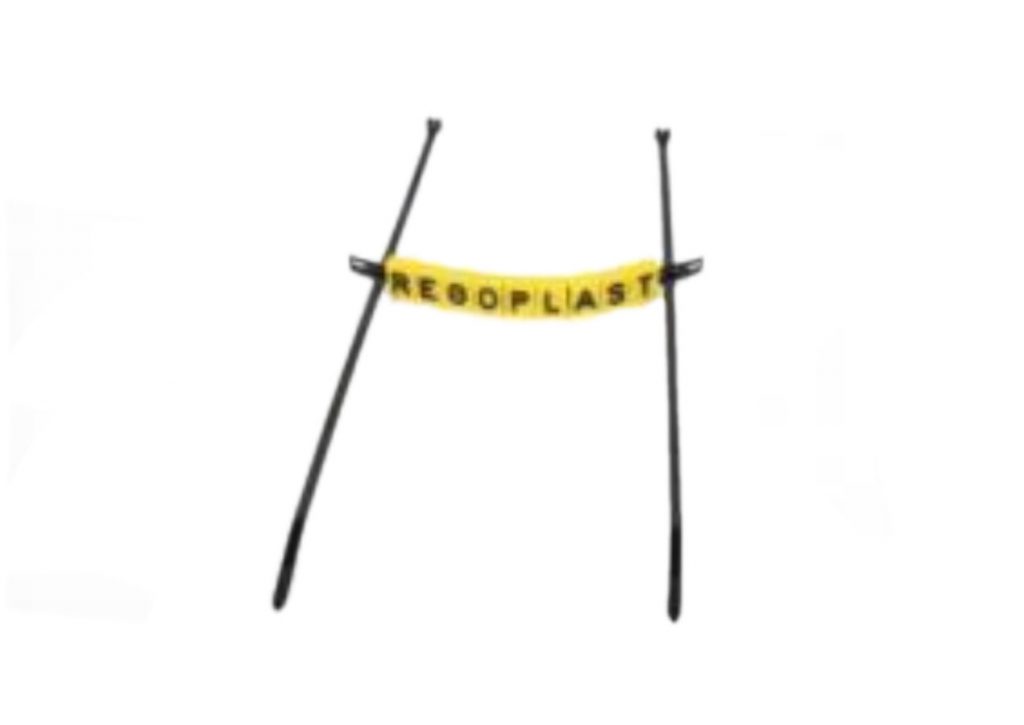

Then pull the cable tie through the openings at both ends ...

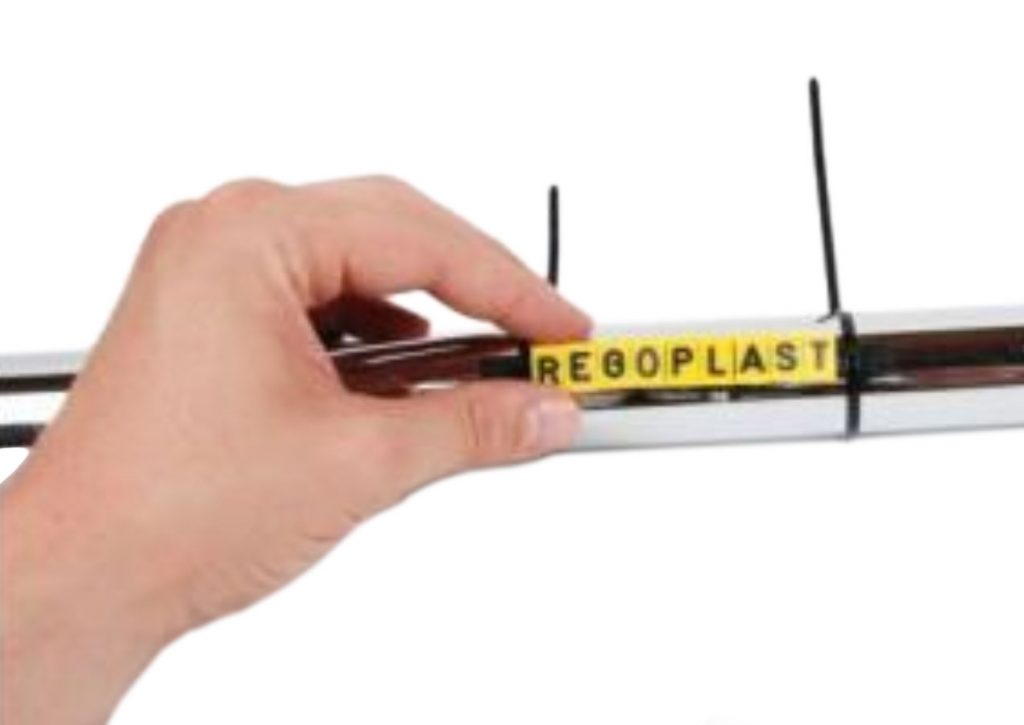

... and attach to the medium

Cable markers 1980 series and accessories

Description	Material	Size in mm	Capital letters / numbers / symbol	Packaging unit	Base colour / font colour	Item no.
Marker 1980*	Polypropylene	13 x 9 x 4	0-9 / A-Z, slash, dot, hyphen, colon, blank, + sign, = sign, arrow (flow direction right/left or up/down), bracket open/close ( ), special character, lowercase i,e	100/Symbol	yellow / black	321550
"	"	"	"	"	red / white	321551
"	"	"	"	"	white / black	321560
"	"	"	blank	"	red	321564/a
"	"	"	"	"	green	321564/b
"	"	"	"	"	blue	321564/c
"	"	"	"	"	orange	321565/a
"	"	"	"	"	violet	321565/b
"	"	"	"	"	grey	321565/c
"	"	"	"	"	black	321565/d
"	"	"	"	"	brown	321565/e
perforated strip (in cassette)	Polyamide	7.6 x 0.5	-	50 m roll	black	321570
profile rail	Rigid PVC	1,000 x 17	-	1		321573
Cable tie	Polypropylene	208 x 3.6	-	100		321574
Cable tie	Polyamide 6/6	186 x 4.8	detectable	100	light blue	321575
Cable tie	Polyamide 6/6	200 x 3.6	-	100		321576
Collet WT1	see also series 0081		-	1	-	321521
All-purpose scissors	"		-	1	-	311522
Assortment box (44 compartments)	Sheet steel 485 x 365 x 42 (see also series 0081)	485 x 365 x 42	-	1	blue	311523
Tool ERG50	Tool for plastic cable ties (2.4-4.8 mm), adjustable setting force, autom. burr-free cut, section remains on the tool - ideal for food processing industry etc. (see description.					311524
Please enter the desired letter/number/character after the order number (example: 311550/ A).

Cable markers series 1980 in assortment box

Size box in mm (LxWxH)	Box material	Base color / font color	Contents / Symbols / Accessories	Quantity per symbol	Total parts	Item no.
485 x 365 x 42	Sheet steel	yellow / black	0-9 / A-Z, slash, dot, dash, colon, blank, = characters, 100 pcs. Cable ties, 1 pc. Cable scissors, 50m perforated strip	30	42 / 1,260	321580
"	"	yellow / black	"	50	42 / 2,100	321581
"	"	yellow / black	"	100	42 / 4,200	321582
"	"	yellow / black	"	150	42 / 6,300	321583
"	"	white / black	"	30	42 / 1,260	321590
"	"	white / black	"	50	42 / 2,100	321591
"	"	white / black	"	100	42 / 4,200	321592
"	"	white / black	"	150	42 / 6,300	321593
"	"	red / white	"	30	42 / 1,260	321594
"	"	red / white	"	50	42 / 2,100	321595
"	"	red / white	"	100	42 / 4,200	321596
"	"	red / white	"	150	42 / 6,300	321597

Cable marker series 0081

Series 0081

The markers of the 0081 series are plugged into each other, are self-locking and therefore do not require Carrier. With its small size (6 x 4 x 3 mm) they are very good for low Cable cross sections suitable. At the beginning and end there is a block for fastening by means of a cable tie. Possible applications: Markings of cable bundles, cable harnesses, in the visible area of control cabinets, Special machine construction.

Our service for you: Assembly Instructions Regoplast^® Cable Marker Series 0081

Assembly Instructions Regoplast^® Cable Marker Series 0081

Cable markers series 0081 and accessories

Description	Base color / font color	Packaging unit	Material	Size in mm	Capital letters / numbers / symbol	Item no.
Marker 0081	yellow / black	100/Symbol	Polyethylene	6 x 4 x 3	0-9 / A-Z, slash, dot, hyphen, colon, blank, + sign, start and end block	311500
"	white / black	"	"	"	"	311510
Cable tie	light blue	100	Polyamide 6.6	92 x 2.4	detectable (see description)	311519
Cable tie	black	100	Polypropylene	92 x 2.4	-	311520
Collet WT1	-	1	-	-	-	311521
Cable scissors	-	1	-	-	-	311522
Assortment box (44 compartments)	blue	1	Steel	485 x 365 x 42	-	311523
Tool ERG50	black / orange	1	Tool for plastic -cable ties (2.4-4.8 mm), adjustable setting force, automatic burr-free cut, section remains on the tool, etc.			311524
Please insert the desired letter/number/character after the order number (example: 311500/ A).

Cable marker series 0081 in assortment box

Size box in mm (LxWxH)	Material Box	Base color / font color	Content Symbols / Accessories	Quantity per symbol	Total parts	Item no.
485 x 365 x 42	Sheet steel	yellow / black	0-9 / A-Z, slash, dot, hyphen, colon, blank, start and end block (double quantity each), 100 pcs. cable ties, 1 pc. cable shears	30	42 / 1,290	311530
"	"	"	"	50	42 / 2,150	311531
"	"	"	"	100	42 / 4,300	311532
"	"	"	"	150	42 / 6,450	311533
"	"	white / black	"	30	42 / 1,290	311540
"	"	"	"	50	42 / 2,150	311541
"	"	"	"	100	42 / 4,300	311542
"	"	"	"	150	42 / 6,450	311543

self-adhesive film

Labelable cable and wire markers

PVC marking strips for cable marking, self-adhesive film consisting of title block (white) and protective film, cut into 6 strips on cards for easy peeling.
Delivery form: In pocket packs of 10 Cards and 6 strips per card (= 60 strips)
Item no: 311600
