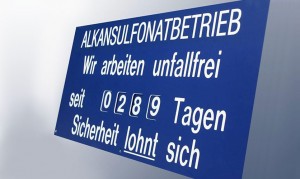

Engraving labels

Manufactured according to your specifications.

We produce engraved signs according to your specifications on 3-layer non-translucent material. This allows both sides to be engraved without any disadvantages. The materials we use are PVC, Formatour^®, Resopal^® and Alu-Dibond^®. With PVC Formalon^® and Resopal^®, you have a wide range of colors to choose from. From these, there are many possible combinations. The fonts are very visible and stand out.

The font height and thickness are adjusted, as is the placement of the font on the substrate. We not only have the usual font types but can offer almost any font type. We assemble the engraved signs according to your specifications, if this is possible depending on the material.

Freedom in terms of color design

Also, if white font on a colored background has proven to be successful, this should not get in the way of your personal ideas. We offer numerous color combinations for signs, especially for those made of PVC or Resopal^® manufactured signs. But if you like it uncomplicated, you can also rely on our know-how and our recommendation.

Fonts and symbols

In addition to all standard fonts, you can also choose almost any other font type. The engraving technique makes the letters stand out visually, which further improves their legibility. Our range is also supplemented by signs with engraved directional arrows, which are advantageous for pipelines. Attached from the outside, they indicate the direction in which the respective medium flows inside the pipe.

EXTRAS DESIRED?
IT´S A PLEASURE.

Those who move great things sometimes need great flexibility. This also applies to our customers, some of whom operate worldwide. We can easily incorporate extras such as adjustable positions for changing dates, numbers or values into our engraved signs. Just ask us.

Engraving material

Take advantage of our wide range.

Whether weather-resistant or perfectly engravable, whether you want the lettering on the back in mirror writing or laser-cut free forms. Whether with one-sided protective film application or glossy, hard surface. With us you will find the perfect material for your needs. No suitable material? Contact us. We will be happy to advise you.

Engraving plates from

Formaglass^®

film coated acrylic sheets
cast
Good dimensional stability
weatherproof
perfectly engravable
Labeling on the back in mirror writing
Laser processing (labeling and cutting also possible)
Prices incl. protective film application on one side

Brass

Gravure brass with high-gloss, polished or satin surface
excellent quality from German production, MS 58
perfectly engravable
unvarnished
Prices incl. protective film application on one side

Aluform matte

High-quality matt sheet anodized on both sides according to DIN AIMg 3, G27 3/4 hard
Strictly compacted according to DIN specification
decorative anodized quality
Anodized layer approx. 15 my
best engraving quality
engraving, printing and laser possible

Formapal

glossy, hard surfaces
Melamine
Largely resistant to solvents and chemicals
flame retardant
perfectly millable
engravable on both sides
Laser marking possible
12 brilliant colors in 3 color groups

aluFORM stainless steel look

high quality DIN anodized ground plate ALMg 1
decorative anodized quality
engraving, printing and laser possible
Surface polished in stainless steel look, grain 180
Grinding direction parallel to the long side, thus low wastage
Prices incl. protective film application on one side

Aluform glossy

high quality glossy plate in quality Peraluman
Alu-Suisse Singing, Hard
Anodized on both sides
decorative anodized quality
Anodized layer approx. 18 my
best engraving quality
engraving, printing and laser possible

PVC signs engraved and matching sign holder

Size in mm	Version	Item no.
100 x 47 x 1.25	including one engraved line (max. 20 letters)	130420
120 x 47 x 1.25	including one engraved line (max. 20 letters)	130421
120 x 83.5 x 1.25	including one engraved line (max. 20 letters)	130422
200 x 83.5 x 1.25	including one engraved line (max. 20 letters)	130423
Detailed information in the price list. (For font heights up to and including 5 mm, Material Formatur must be used. This does not change the line prices - price list)

Engraved PVC signs

Version		Item no.
Up to the size: 400 x 300 x 1,25 mm		140430
Engraved signs made of VA steel or other materials on request.

PVC engraving plates

Material / colour	Size in mm	Thickness in mm	Item no.
PVC	1,320 x 800	0.50	140490
		0.75	140491
		1.00	140492
		1.25	140493
		2.00	140494
		2.25	140495
		3.00	140496
silver / black	1,220 x 600	0.80	140500
		1.50	140501
		2.00	140502
gold / black	1,220 x 600	0.80	140503
		1.50	140504
		2.00	140505
aluminum / black	1,220 x 600	0.80	140506
		1.50	140507
		2.00	140508
Other thicknesses and colors as well as 3-layer melamine resin panels on request.

Regoplast^® directional arrows engraved

Size in mm	Version (flow direction arrow)	Item no.
30 x 30 x 1.25	all directions	140445
47 x 20 x 1.25	right / left	140450
47 x 20 x 1.25	up / down	140451
47 x 47 x 1.25	all directions	140455
83.5 x 30 x 1.25	right / left	140460
83.5 x 30 x 1.25	up / down	140461
83.5 x 83.5 x 1.25	all directions	140465
200 x 90 x 1.25	right / left	140470
200 x 90 x 1.25	up / down	140471
200 x 200 x 1.25	all directions	140475
The directional arrows (in all 15 color combinations) enable you to immediate recognition of the medium flow direction. Mounting options with Signs in Regoplast® sign holders and yardage.

Regoplast^® marking pen

Version	Writing color	Item no.
slim	black	140510
bold	black	140511
